Линии подачи к прессу

55 years of continuous coil line technology development has elected Dimeco as one of the world biggest supplier to the stamping market as well as to fabricating.

Dimeco provides the world widest range of equipment, matching needs of small press shops up to major automotive market players.

Huge R&D work has been achieved to develop the new levelling technologies required by the evolution of materials available today (high press steel).

Main features of equipment

Coil weight from 200 kg (440 Lbs) to 35 tons (77,000 Lbs)
Strip width from 200 mm (8”) to 2000 mm (79 “)
Material thickness from 0.1 mm (4 thou) up to 10 mm (0.4 in.)
Material quality from soft aluminium up to 1500 Mpa high press steel
Coil cradle, 3 in 1 combination, short line & long line configurations match all applications.

Download PDF Brochure

Line Structure

Long lines

The most efficient, the fastest, the one to use with delicate materials.
Straightener and feeders are separated by a loop allowing the feeder and the press to run at maxi speed with a smooth and continuous process in the straightener.
Speed software automatically matches feeders and coil unwinding speed together with press rate and feed length.
Infeed peeler & table allow safe and quick coil change process.

Short lines

How to save space…
The best for heavy materials…
Straightening and feeding operations are combined in one machine.
We use either a loop under coil or a rear loop when possible.
For specific applications, a servo driven uncoiler is used to match feed rate.

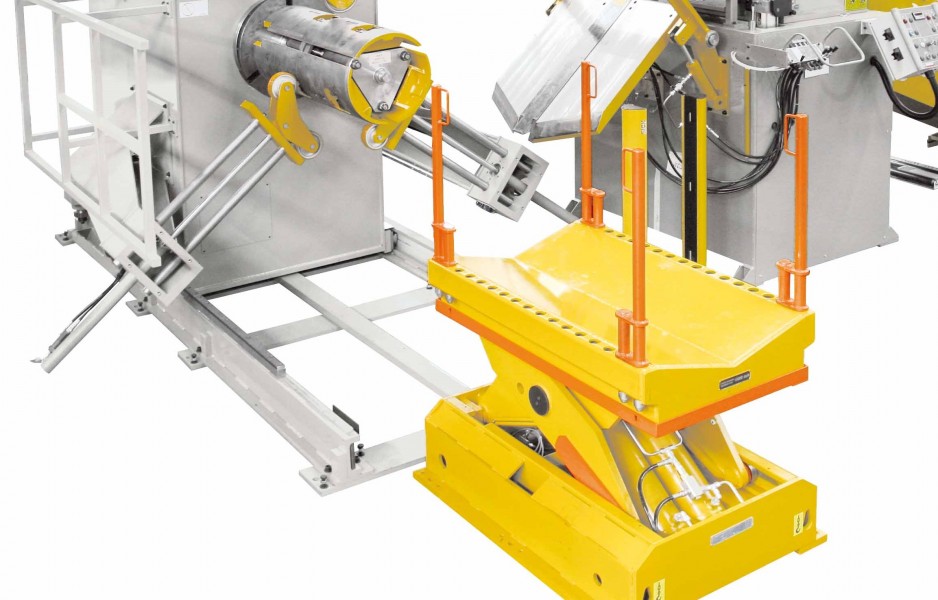

Quick Coil change

Today challenge is to make short runs and to get the press running as much as possible…
Solutions for quick coil change:

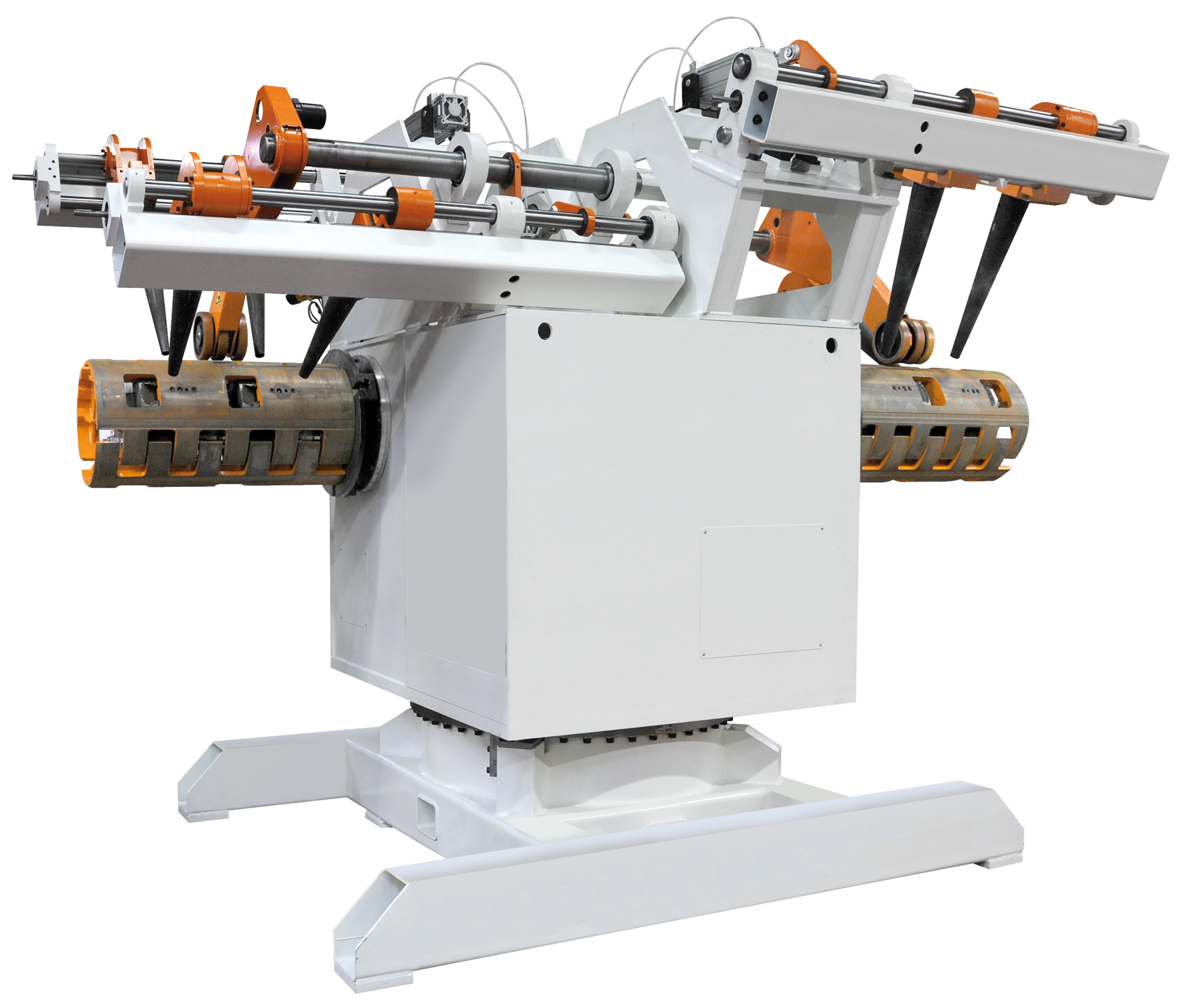

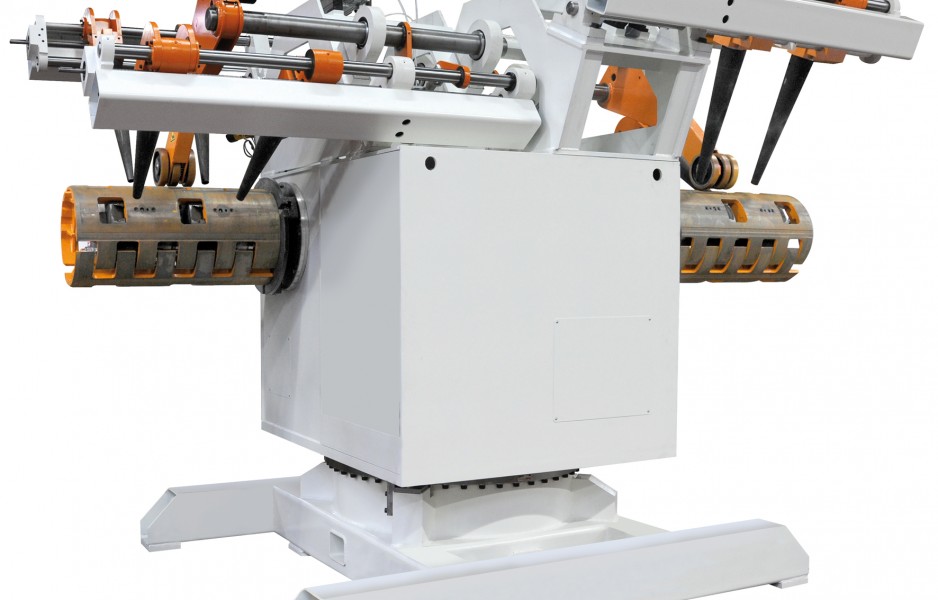

Double and quadruple uncoilers
Integrated coil loading (tilting) equipment
Multiple coil holder
Autonomous coil loading & tilting car

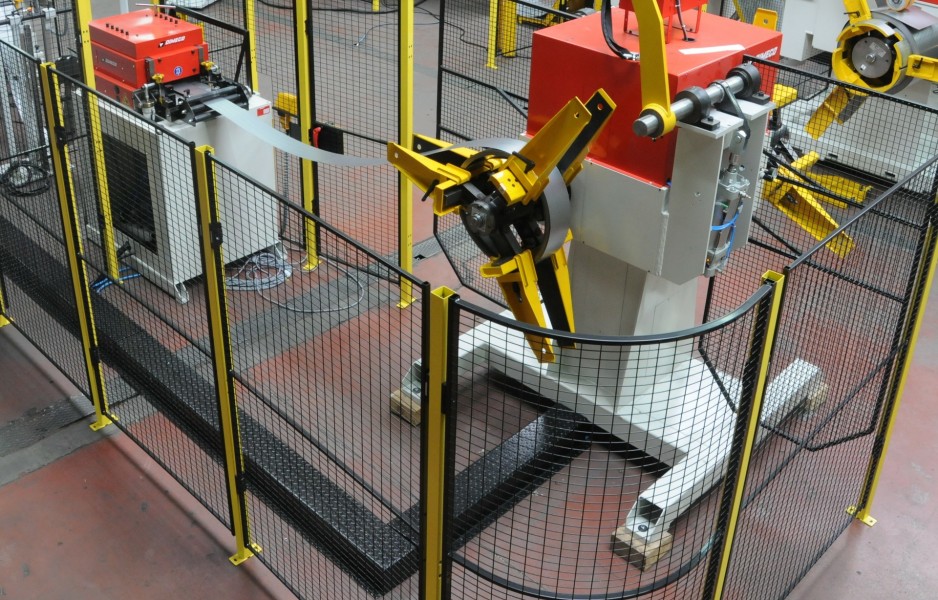

Operator safety

World widest uncoiler Range

Model	Metric		US
	Weight (kg)	Width (mm)	Weight (lbs)	Width (inches)
	Up to	Up to	Up to	Up to
2310	200	200	440	8	Single & Double
2330	500	300	1,100	12	Single & Double
2350	1,000	500	2,200	20	Single & Double
2371	3,000	800	6,600	31	Single & Double
2381	4,500	800	9,900	31	Single & Double
2384	6,000	1300	13,200	51	Single & Double
2386	8,000	1300	17,600	51	Single Only
2387	10,000	1500	22,000	59	Single Only
2395	15,000	1800	33,000	71	Single & Double
2398	25,000	2000	55,000	79	Single Only
2399	35,000	2000	77,000	79	Single Only

Straightener & corrective leveller range

CRADLE TYPE STRAIGHTENER
Model	Metric			US
	Width (mm)	Thickness (mm)		Width (inches)	Thickness (inches)
	Up to	From	Up to	Up to	From	Up to
1632	100	0.1	1	4	0.004	0.039
1633	160	0.2	2	6	0.008	0.079
1634	665	0.2	3.5	26	0.008	0.138
1681	410	0.2	2.5	16	0.008	0.098
1683	1,825	0.2	3.4	72	0.008	0.134
1684	2,050	0.3	6	81	0.012	0.236
1685	2,050	0.4	7	81	0.016	0.276

INDIVIDUAL ROLL ADJUSTMENT STRAIGHTENER
Model	Metric			US
	Width (mm)	Thickness (mm)		Width (inches)	Thickness (inches)
	Up to	From	Up to	Up to	From	Up to
1635	300	0.4	1	12	0.016	0.039
1645	500	0.2	3	20	0.008	0.118
R674	1,300	0.15	4	51	0.006	0.157
R676	1,300	0.4	6	51	0.016	0.236
R690	2,000	0.5	8	79	0.02	0.315
R691	2,050	1.2	9	81	0.047	0.354
R6925	2,050	0.15	5.5	81	0.006	0.217

CORRECTIVE LEVELLERS
Model	Metric			US
	Width (mm)	Thickness (mm)		Width (inches)	Thickness (inches)
	Up to	From	Up to	Up to	From	Up to
P693/6	2,000	0.2	2	79	0.008	0.079
P694/6	2,000	0.3	2.5	79	0.012	0.098
P696/6	2,000	0.6	4.5	79	0.024	0.0177
P697/6	2,000	1.2	6	79	0.047	0.0236

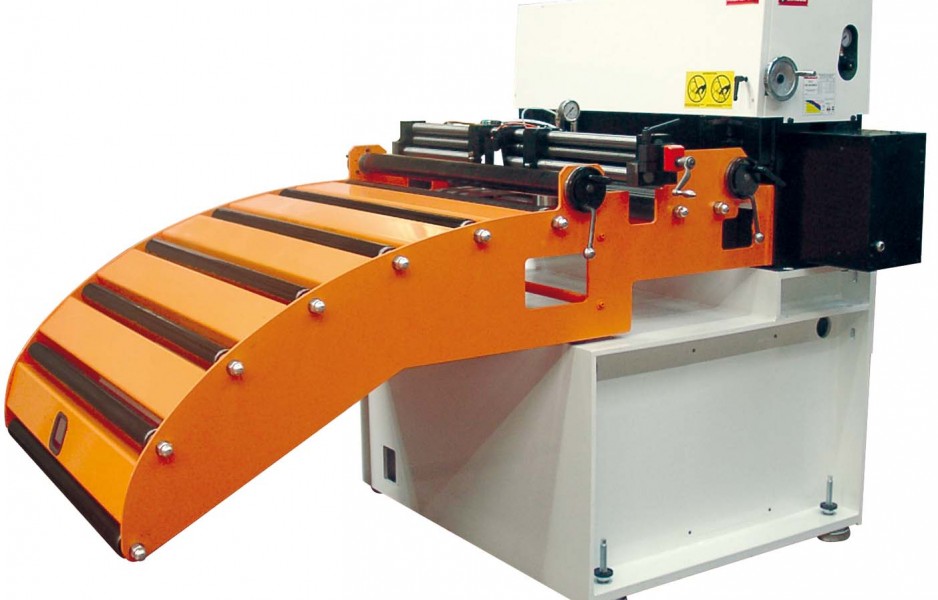

Servo Feed range

Model	Metric			US
	Width (mm)	Thickness (mm)		Width (inches)	Thickness (inches)
	Up to	From	Up to	Up to	From	Up to
1050	105	0.2	1	4	0.008	0.039
1060	310	0.2	1.5	12	0.008	0.059
1082	815	0.2	3	32	0.008	0.118
1100	1,020	0.2	6	40	0.008	0.236
1125	1,500	0.2	6.35	59	0.008	0.25
1160	2,050	0.2	10	81	0.008	0.394
